Getting coordinates of design bounds

• 1 minute to read

When processing a design model, you may need to determine the bounds of the rectangle that fits all objects on the canvas and its upper-left corner relative to the print area or surface. This guide explains how to calculate these values, including handling bleed areas and multiple print areas.

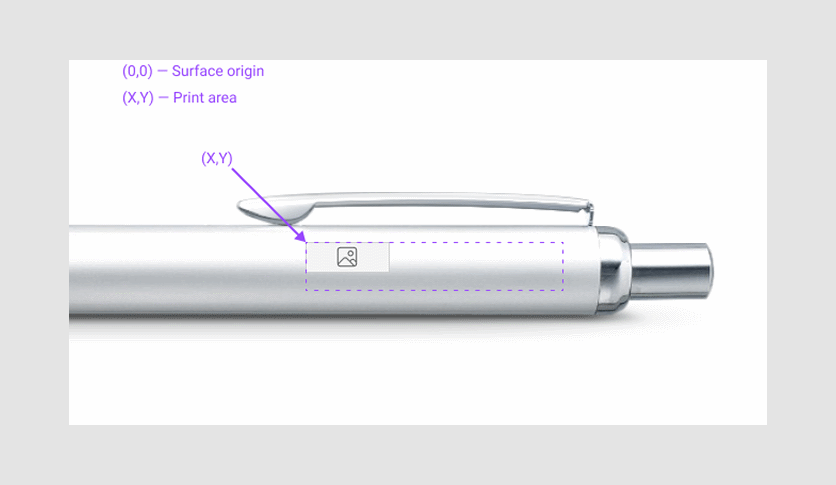

Step 1: Understand the relationship between surface, print area, and bleed area

• The surface size typically equals the print area size unless a bleed area is added.
• If a bleed area is present:
  • The print area is calculated as: Print Area = Surface Size - Bleed Area
  • Coordinates are relative to the print area bordered by the bleed line, not the surface.

Step 2: Calculate the upper-left corner

To get the upper-left corner of the bounding rectangle in points, use the following code:

import { RectangleF } from "@aurigma/design-atoms-model/Math";
const { width, height, left, top } = RectangleF.getOverallBounds(rectangles);

• left and top contain the coordinates of the upper-left corner of the overall bounds.
• Use width and height to calculate other points if needed.

Step 3: Adjust coordinates relative to the print area

• If the print area and item coordinates are the same, they are relative to the surface.
• To get the position of the item relative to the print area, subtract the print area's coordinates from the item's coordinates:

import { Surface, PrintArea } from "@aurigma/design-atoms-model/Product";
const targetPrintArea = currentSurface.printArea[0];
const realLeft = left - targetPrintArea.bounds.left;
const realTop = top - targetPrintArea.bounds.top;

Step 4: Handle multiple print areas (Optional)

If there are multiple print areas, determine which print area the item belongs to. For example, check if the item's top-left corner is inside a print area:

const itemBelongsPrintArea = (printArea) =>
  left >= printArea.bounds.left && top >= printArea.bounds.top;
const targetPrintArea = currentSurface.printArea.find(itemBelongsPrintArea);

if (targetPrintArea == null) {
  throw new Error("An item is outside all print areas!");
}
