Overview

A widget is a small UI element that can be inserted into a left, main, or bottom panel (or in a special Group widget). This section describes supported widgets, what settings they have, and how to work with them.

Anatomy of widgets

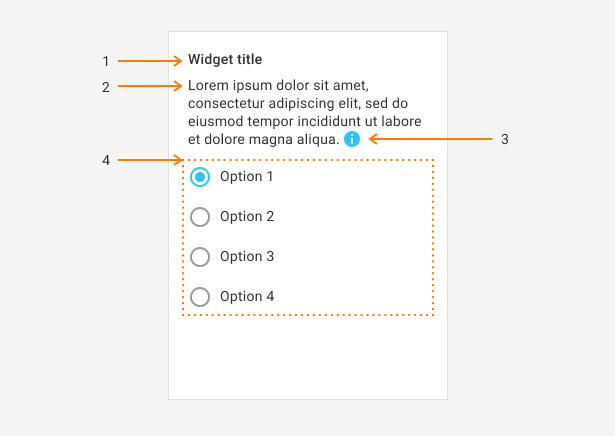

Each widget consists of the following elements:

1. A widget header, or title.
2. A hint explaining what the user is supposed to do with it, or prompt.
3. An additional description, which appears as a tooltip, or description.
4. A widget body.

In a JSON structure, each widget contains the following properties:

• name - a unique widget name (in the scope of one config), which you use to refer to this widget in expressions.
• type - a widget type.
• params - widget settings, which configure its behavior. See documentation for each widget for more details.

The following properties are optional. They have the same meaning as depicted in the figure above.

• title
• prompt
• description

JSON example

A widget looks like this:

{
    "name": "stub",
    "title": "Hello world",
    "prompt": "This is a concept that I had in mind for a long time and I am happy to share it.",
    "description": "This is a concept that I had in mind for a long time and I am happy to share.",
    "type": "static-text",
    "params": {
        "text": "Hello world"
     }
}

How to refer to widgets inside the config

In dynamic expressions, you may refer to widgets using the $. Note, it does not have anything to do with jQuery, it is just a shortcode. Alternatively, you can use such aliases as wig and widget.

Many widgets have some elements that you may select. To refer to the selected element of such a widget, you can use a selected property or its shorter version, _.

For example, to get the title of the selected item of a widget called list, use the following expression:

$['list']._.title

Widgets in UI Framework

Here, you can find a list of widgets implemented in the UI Framework.
