This widget shows an options menu. Usually, it shows the options of a product: color, size, and so on. You can use this widget only in workflows based on the Product Specification approach.

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "values": [ ... ]
  }
}

This widget represents options in the following visual forms:

  • radio
  • image
  • color
  • list
  • checkbox

Radio, color, and image types have a subType: detailed or compact.

Radio

The following type of options shows radio buttons and allows a customer to select only one value.

Radio options

{
  "name": "my-options",
  "type": "option",
  "title": "Select the option",
  "params": {
    "type": "radio",
    "subType":"detailed",
    "values": [
      {
        "title": "Lemon yellow"
      },
      {
        "title": "Tawny"
      },
      {
        "title": "Burgundy"
      }
    ]
  }
}

The compact subtype creates square buttons.

Radio options in the compact view

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "radio",
    "subType": "compact",
    "values": [
      {
        "title": "Sky blue"
      },
      {
        "title": "Scarlet"
      },
      {
        "title": "Beige"
      }
    ]
  }
}

Color

This type allows you to create options with color swatches.

Color options

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "color",
    "values": [
      {
        "title": "Sky blue",
        "color": "#87CEEB"
      },
      {
        "title": "Scarlet",
        "color": "#FF2400"
      },
      {
        "title": "Beige",
        "color": "#F5F5DC"
      }
    ]
  }
}

To create round buttons, use the compact subtype.

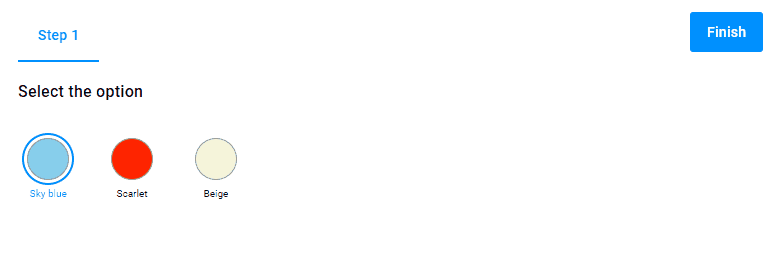

Color options in the compact view


{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "color",
    "subType": "compact",
    "values": [
      {
        "title": "Sky blue",
        "color": "#87CEEB"
      },
      {
        "title": "Scarlet",
        "color": "#FF2400"
      },
      {
        "title": "Beige",
        "color": "#F5F5DC"
      }
    ]
  }
}

List

Let's see options in a drop-down list.

Options in a drop-down list

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "list",
    "values": [
      {
        "title": "Salmon"
      },
      {
        "title": "Rose"
      },
      {
        "title": "Magenta"
      }
    ]
  }
}

Checkbox

Using the checkbox type, you create a list of checkboxes.

Option list of checkboxes

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "checkbox",
    "values": [
      {
        "title": "Ivory"
      },
      {
        "title": "Hazelnut"
      },
      {
        "title": "Snow white"
      }
    ]
  }
}


You can use a URL that links to an image to add this image to an option.

Option list of images

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "image",
    "values": [
      {
        "title": "Picture 1",
        "imageUrl": "https://customerscanvas.com/media/1746b818-0f68-4dde-a987-66411353964a/4-rQKA/CustomersCanvas/images/plus/feature-receive/04-preflight.png"
      },
      {
        "title": "Picture 2",
        "imageUrl": "https://customerscanvas.com/Aurigma/Theme3/img/preflight/turn-well-designed-files-into-well-printed-products.svg"
      },
      {
        "title": "Picture 3",
        "imageUrl": "https://customerscanvas.com/media/a0fa676c-a692-41ea-a785-e827c5ff4ee3/09Huhw/CustomersCanvas/images/main/services/01-turnkey-storefront.png"
      }
    ]
  }
}

To create round frames for images, use the compact subtype.

Option list of images in the compact view

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "image",
    "subType": "compact",
    "values": [
      {
        "title": "Picture 1",
        "imageUrl": "https://customerscanvas.com/media/1746b818-0f68-4dde-a987-66411353964a/4-rQKA/CustomersCanvas/images/plus/feature-receive/04-preflight.png"
      },
      {
        "title": "Picture 2",
        "imageUrl": "https://customerscanvas.com/Aurigma/Theme3/img/preflight/turn-well-designed-files-into-well-printed-products.svg"
      },
      {
        "title": "Picture 3",
        "imageUrl": "https://customerscanvas.com/media/a0fa676c-a692-41ea-a785-e827c5ff4ee3/09Huhw/CustomersCanvas/images/main/services/01-turnkey-storefront.png"
      },
      {
        "title": "Picture 4",
        "imageUrl": "https://customerscanvas.com/media/857153f3-ffd7-45e0-8b7d-c8adc17f24f0/uR_NLg/CustomersCanvas/images/main/cc-main-02-company-size.png"
      }
    ]
  }
}

Multilist

This type allows you to add new option values.

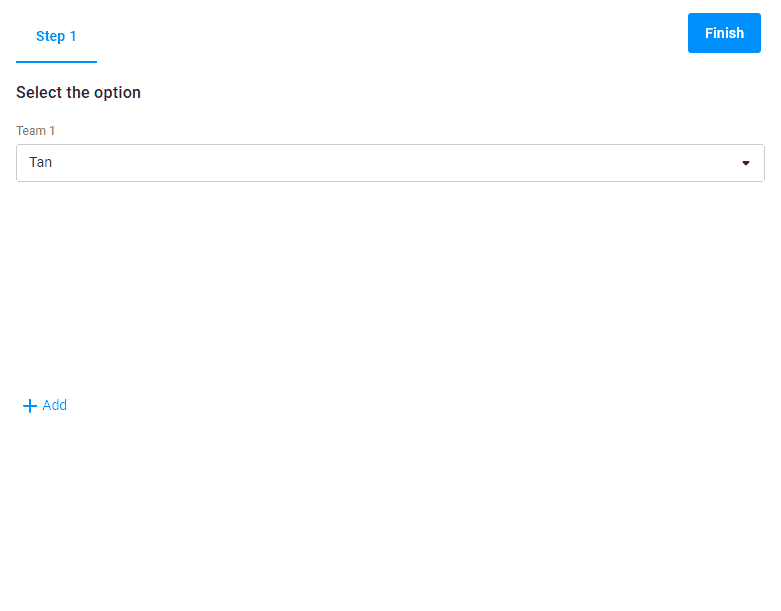

Multilist

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "multilist",
    "values": [
      {
        "title": "Tan"
      },
      {
        "title": "Coral"
      },
      {
        "title": "Lavender"
      }
    ]
  }
}

Hints

Using the description and prompt properties, you can define hints for an option.

Adding hints to options

{
  "type": "option",
  "name": "my-options",
  "title": "This is my options",
  "description":"Click the drop-down list",
  "prompt":"Select the option",
  "params": {
    "type": "list",
    "values": [
      {
        "title": "Sky blue",
        "color": "#87CEEB"
      },
      {
        "title": "Scarlet",
        "color": "#FF2400"
      },
      {
        "title": "Beige",
        "color": "#F5F5DC"
      }
    ]
  }
}

Props

The props properties specify extra settings for the options.

Let's consider some of them.

Limitation of options

For example, there are three checkbox options in the widget, and a customer is allowed to select only two of them. You can implement this by using the maxCount properties.

Limiting the selected options

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "checkbox",
    "props": {
      "maxCount": 2
    },
    "values": [
      {
        "title": "Ivory"
      },
      {
        "title": "Hazelnut"
      },
      {
        "title": "Snow white"
      }
    ]
  }
}

Disabled options

You can make one of the options unavailable for selecting. To do so, add the disabled properties to this option.

Disabling options

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "checkbox",
    "values": [
      {
        "title": "Ivory"
      },
      {
        "title": "Hazelnut",
        "disabled": true
      },
      {
        "title": "Snow white"
      }
    ]
  }
}

Filter

The enableFilter properties display a filter for searching values in the multilist type.

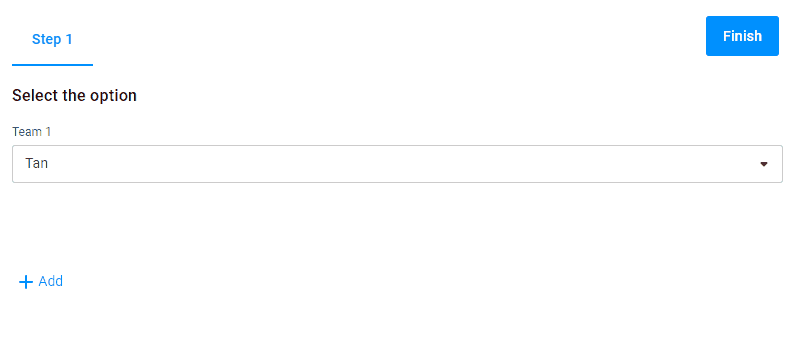

Filtering options

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "multilist",
    "props": {
      "enableFilter": true
    },
    "values": [
      {
        "title": "Tan"
      },
      {
        "title": "Coral"
      },
      {
        "title": "Lavender"
      }
    ]
  }
}

Changing button text

You can change the button text in the multilist type by the addNewItemCaption properties.

Changing button text

{
  "type": "option",
  "name": "my-options",
  "title": "Select the option",
  "params": {
    "type": "multilist",
    "props": {
      "enableFilter": true,
      "addNewItemCaption": "Add new teams"
    },
    "values": [
      {
        "title": "Tan"
      },
      {
        "title": "Coral"
      },
      {
        "title": "Lavender"
      }
    ]
  }
}

Importing options

You don't need to write values in a workflow file. When you work with an e-commerce system, you can define values there and refer to them by their title.

Let's look at the following example. There is a T-shirt in a storefront with two options: Printing Options and Size.

Printing Options has two values: Two-sided and One-sided.

Size has three values: Large, Medium, and Small.

Options in e-commerce systems

This is how the option widget may look in a workflow file. Note that the title is Size and the values property is empty here.

{
  "id": 103,
  "type": "option",
  "name": "size",
  "title": "Size",
  "prompt": "Choose product size.",
  "params": {
    "type": "radio",
    "subType": "compact",
    "title": "Size",
    "visible": true,
    "values": []
  }
}

You define these option values in a product page in your e-commerce system. Since this option has the same title Size as in your workflow file, the system connects data from the workflow file and these options.

Defining options in e-commerce systems

Params

Name Type Description Default value
title string title of option empty string
type radio | image | color | checkbox | list | multilist visual representation of options radio
subType detailed|compact defines visual representation for radio|image|color detailed
props object defines extra settings for options undefined
values array of values defines option variants undefined
description string an additional description, which appears as a tooltip undefined
prompt string a hint explaining what a customer is supposed to select undefined

Prop

Name Type Description Default value
enableFilter boolean creates a filter in the list option type false
maxCount number limits options variants to select undefined
addNewItemCaption string defines the button text for the multilist type add

Values

Name Type Description Default value
color string defines the color of the values for color type in the CSS format undefined
disabled boolean an option isn’t available for selection false
