Concepts

The PIM workflow may consist of three personalization steps: Variant selector, Editor, and Preview.

For each step, the PIM module supports one of the following mockup types:

• The Thumbnail mockup for the Variant selector step.
• The Editor mockup for the Editor step.
• The Preview mockup for the Preview step.

You can read more about personalization steps in the PIM Module intro section.

Let's consider these mockup types.

Thumbnail mockup

The thumbnail mockup is a miniature image of a product and used in the Variant Selector step. It introduces a customer to products and gives a basic idea of them.

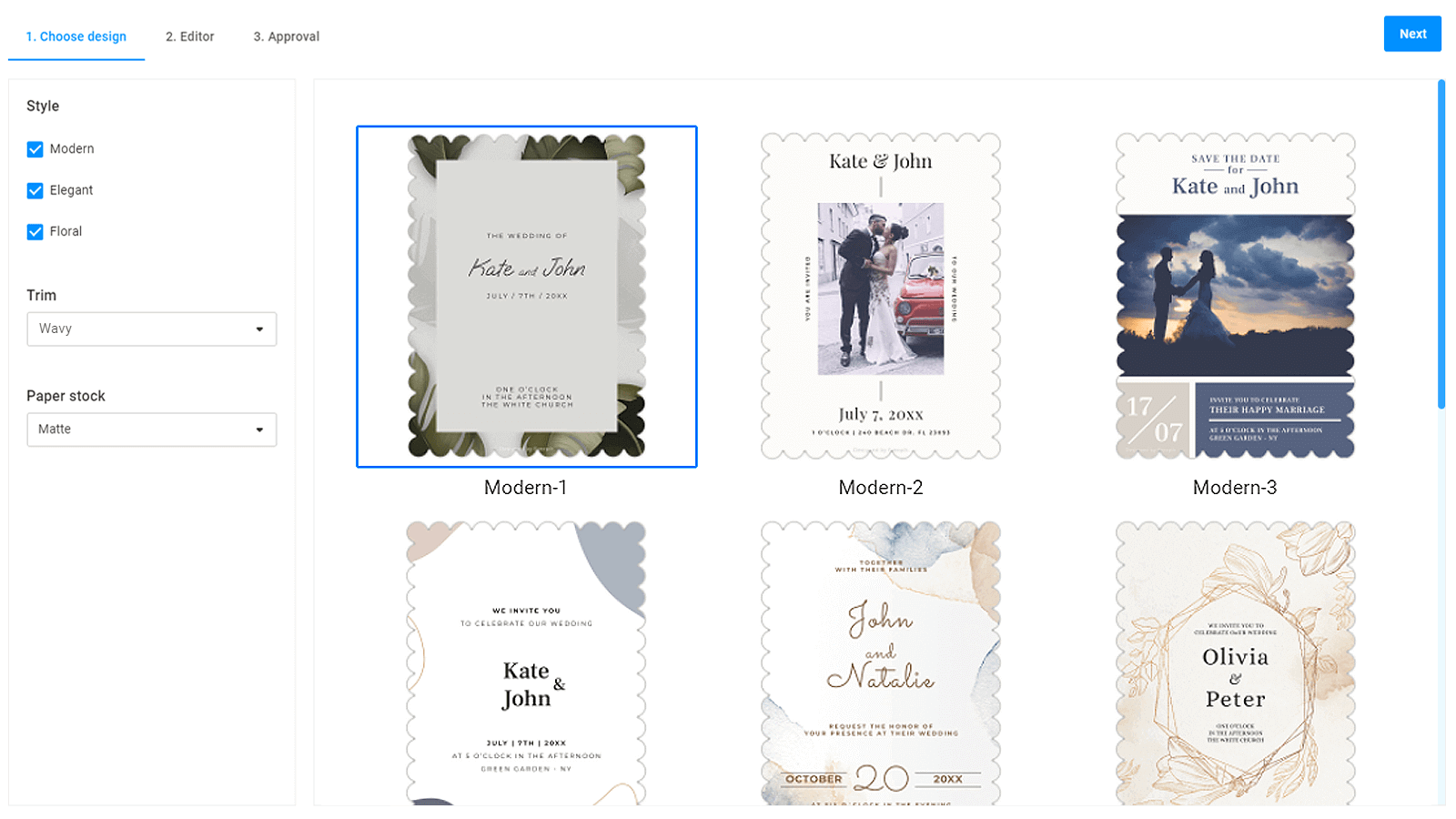

These mockups may show designs frontally, which is suitable for such print products as brochures, business cards, and so on.

You can also use preview mockups with warp and distort transformations in the role of thumbnail mockups. This may be useful to see how a design looks on some real items.

Editor mockup

The editor mockup visualizes a product while personalizing the design in the Editor step. This mockup can also help to display different trim styles, decorative frames, bleed area, and so on.

Preview mockup

The preview mockup demonstrates the personalization results at the Approval step. To create a realistic looking mockup, use complicated transformations in Photoshop, such as warp, distort, perspective, and so on. Blending modes are also supported.

Let's consider the anatomy of these mockup types.

Mockup anatomy

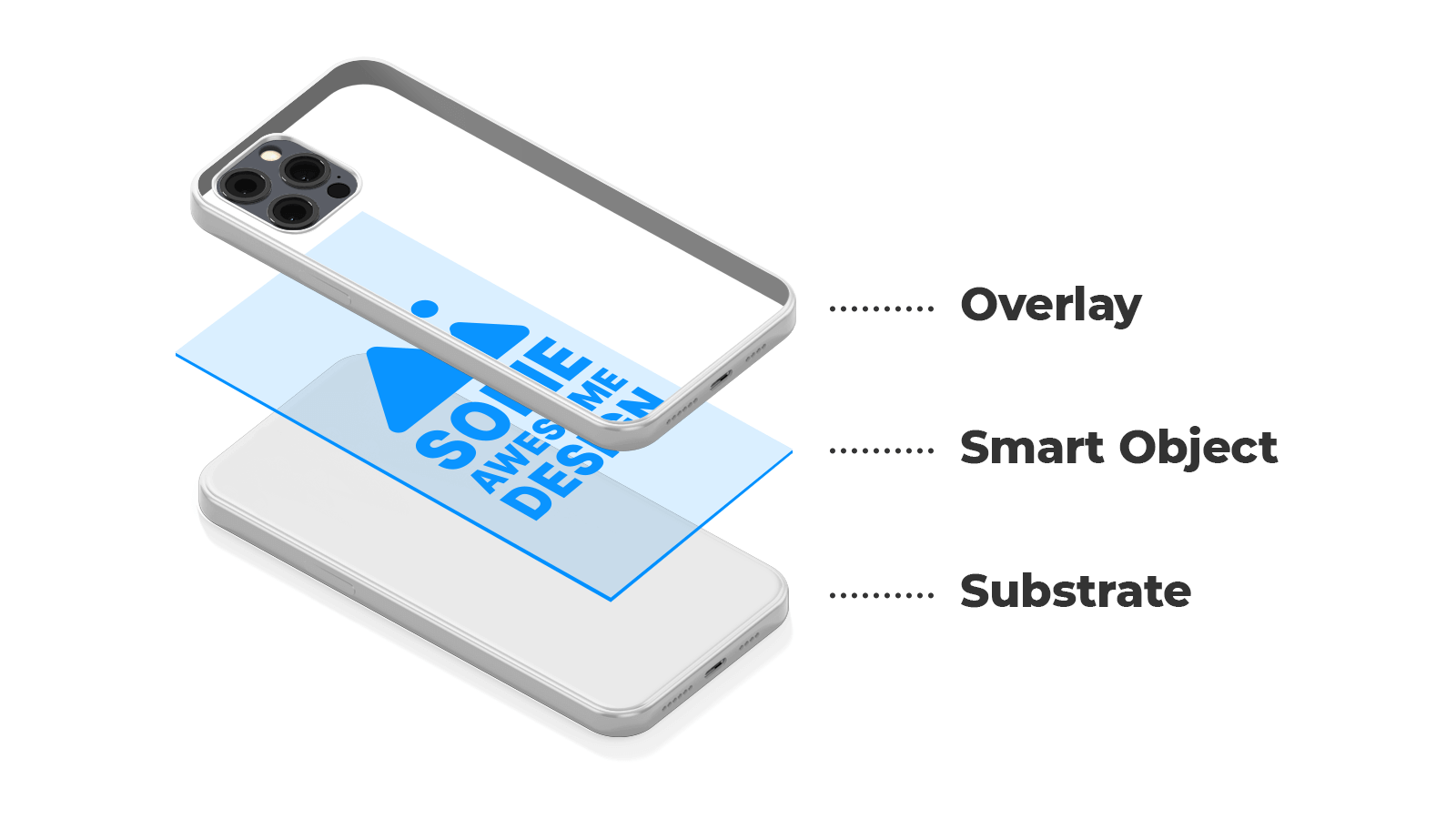

In the PIM module, all types of mockups are supported only in the PSD format. You can consider mockups as regular PSD files created in Adobe Photoshop. They consist of the following layers:

Name	Description
overlay or up-mockup	Optional. These layers are over a smart object.
smart object	Mandatory. This is the layer where a design will be embedded.
substrate or down-mockup	Optional. These layers are under a smart object.

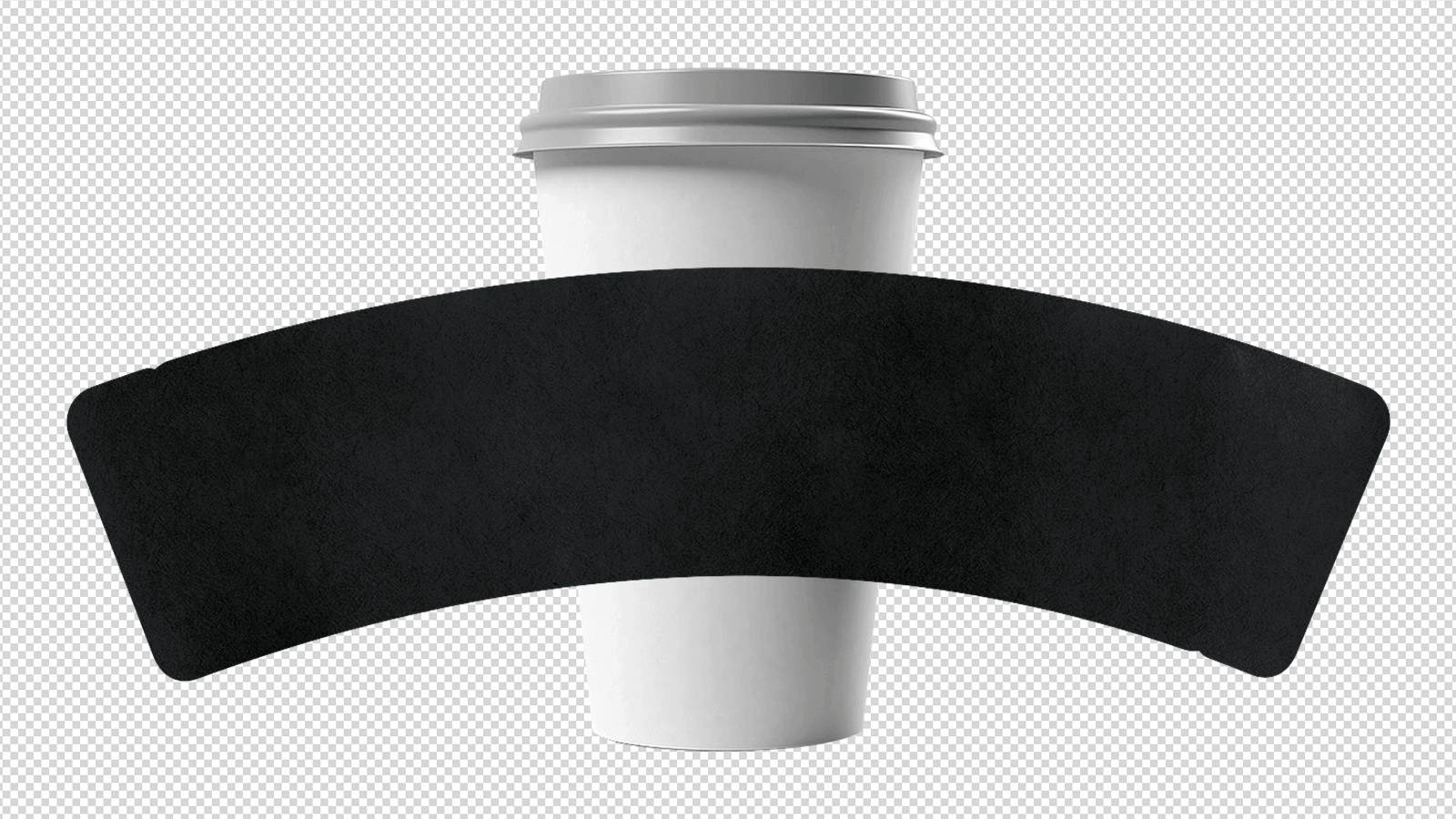

In the previous example, there is the following substrate part of the mockup.

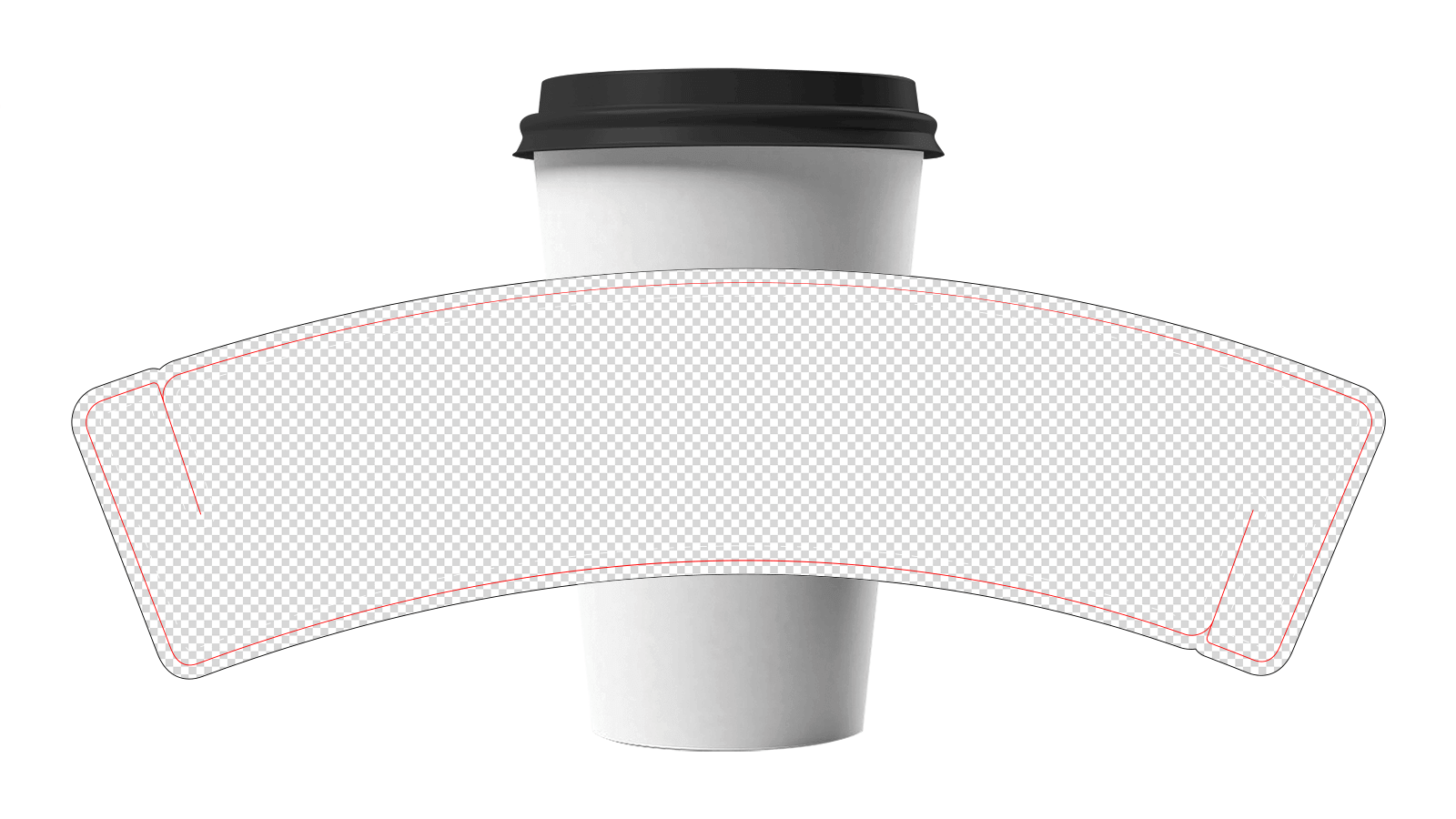

This is the overlay part of the mockup.

Unlike mockups for product specifications, the PIM module allows you to create one mockup file containing all three layers: substrate, overlay, and smart object.

However, there are some specific features for each mockup type. Let's consider them.

Properties	Editor	Thumbnail	Preview
Dimensions	Depends on the physical product size in inches, cm, or mm	The recommended size is from 500px * 500px to 600px * 600px	The recommended size is 1000px * 1000px to 1200px * 1200px
Transformations	—	Smart object implements warp, distort, perspective, and so on
Blending modes	—	To learn more about available blending modes, read the Blending options article
