Checkbox

This widget displays a checkbox.

{
    "name": "agree-checkbox",
    "type": "checkbox",
    "params": {...}
}

Text

This is how a checkbox with text looks. The prompt property shows text near the checkbox.

{
    "name": "my-checkbox",
    "type": "checkbox",
    "params": {
        "prompt": "I approve the design."
    }
}

Checkbox value

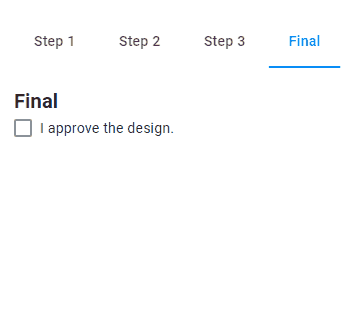

The value property defines whether a checkbox is selected or not. In the following example, the value is false.

{
    "name": "my-checkbox",
    "type": "checkbox",
    "params": {
        "prompt": "I approve the design.",
        "value": false
    }
}

Managing other widgets by clicking a checkbox

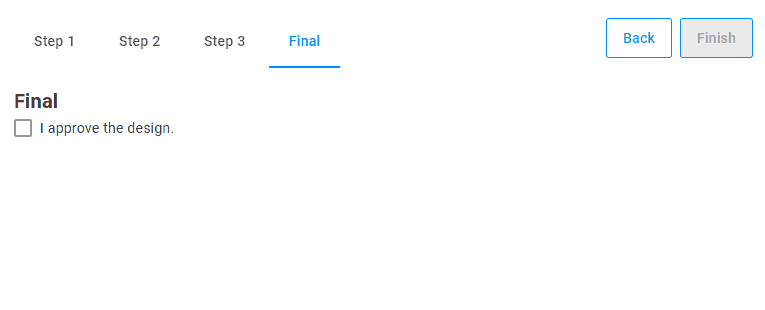

In the following example, we activate the Finish button by a checkbox.

It works because the Finish button refers to the value of the checkbox.

{
    "name": "my-checkbox",
    "type": "checkbox",
    "params": {
        "prompt": "I approve the design.",
        "value": false
    }
},
{
    "name": "my-finish-button",
    "type": "finish-button",
    "params": {
        "enabled": "{{$['my-checkbox']._}}"
    }
}

note

You can write "{{$['my-checkbox'].value}}" instead of "{{$['my-checkbox']._}}". To learn details about syntax of dynamic expressions, read the Dynamic expressions article.

Auto reset

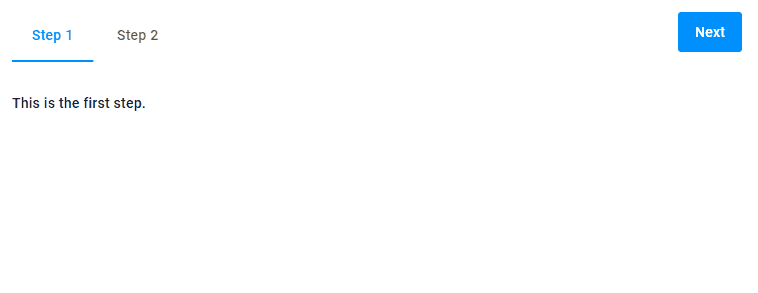

If selected, a checkbox will stay selected, even when you go back to previous steps and then return. This is the default behavior.

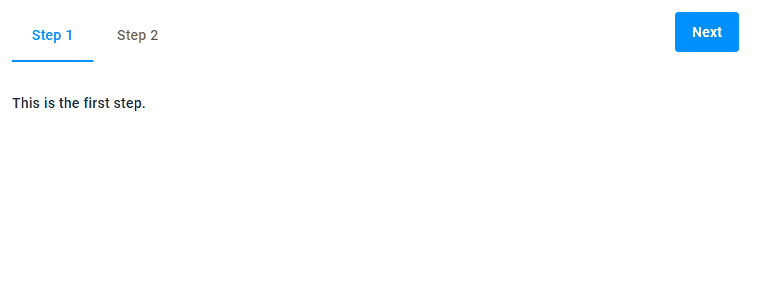

If you want to reset the checkbox value in this case, use the autoReset parameter.

{
    "name": "my-checkbox",
    "type": "checkbox",
    "params": {
        "prompt": "I approve the result.",
        "value": false,
        "autoReset": true
    }
}

Params

Name	Type	Description	Default value
prompt	string	text associated with checkbox	empty string
value	boolean	if true, the checkbox is selected	false
autoReset	boolean	if true, it resets the checkbox	false
