PIM design selector

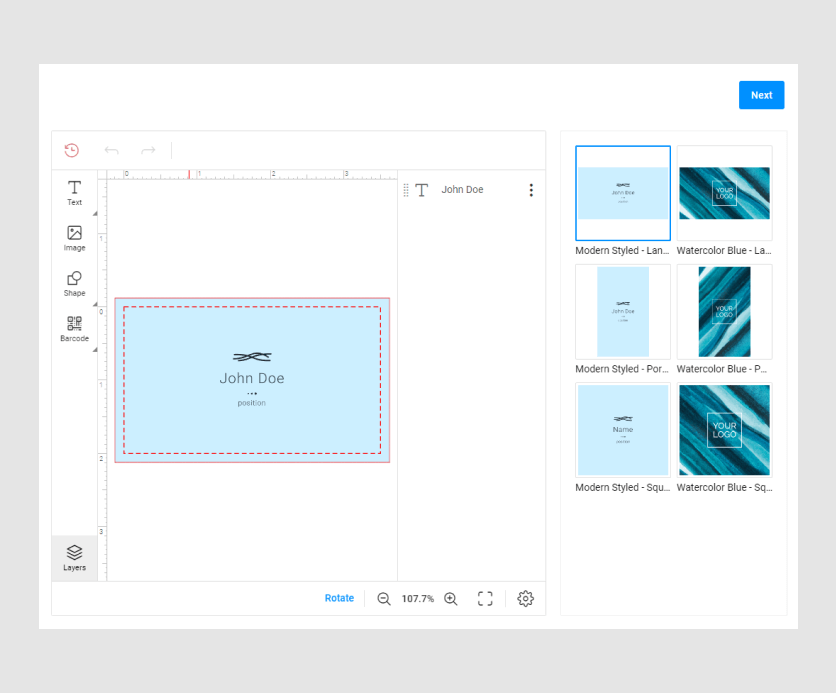

This widget shows designs for products configured in the PIM module and allows you to select one of them.

{
    "name": "design-selector",
    "type": "pim-design-selector",
    "params": {...}
}

Getting design variants

The designs property shows design variants. You can obtain these designs through the pim-ajax widget.

note

If you use this widget in the toolPanel or rightToolPanel, embed it in the group widget. To learn more about this widget, read the group article.

{
    "name": "design-selector",
    "type": "pim-design-selector",
    "params": {
        "designs": "{{ $['pim-ajax'].designs }}"
    }
}

Params

Name	Type	Description	Default value
designs	ProductInformationDesign[]	Contains design variants	empty array
showItemsTitle	boolean	If true, displays a title below a thumbnail	false
itemsPerPage	number	Defines the quantity of thumbnail per page	24
onChange	function	A function or array of functions that will be executed when an item is changed	null
onItemDoubleClick	function	A function or array of functions that will be executed when an item is double-clicked	null
onItemClick	function	A function or array of functions that will be executed when an item is clicked	null
